Description
The Mini Polycrystalline 12V Solar Panels (100W–200W) are compact, lightweight, and efficient PV modules designed for small-scale off-grid applications such as RV, boats, cabins, and tiny homes. With polycrystalline silicon cells, low LID, and durable construction, these panels provide reliable energy generation in a small footprint, making them ideal for portable and limited-space installations.
? Features
-
Power range: 100W, 150W, 200W
-
12V output – ideal for small off-grid systems
-
Mini and compact size – easy to install in limited spaces
-
Polycrystalline silicon cells – reliable and cost-effective
-

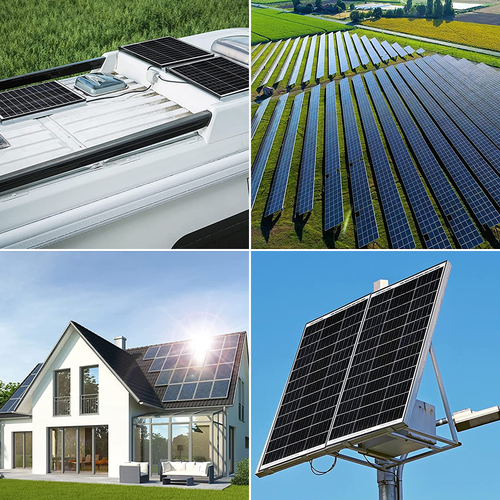

Suitable for RV, camper, boat, cabin, and small home solar systems
-
Lightweight design for portable applications
-
Low LID & PID resistance for stable long-term performance
-
Weather-resistant with durable tempered glass and aluminum frame
? Specifications
-
Power Output: 100W / 150W / 200W
-
Module Efficiency: ~17% – 19%
-
Cell Type: Polycrystalline Silicon
-
Nominal Voltage: 12V DC
-
Open Circuit Voltage (Voc): ~21V – 22.5V
-
Short Circuit Current (Isc): ~5A – 9A
-
Max System Voltage: 1000V DC
-
Temperature Coefficient (Pmax): -0.45% / °C
-
Operating Temperature: -40°C to +85°C
-
Dimensions: ~1050 × 540 × 35 mm (100W) / varies for 150W & 200W
-
Weight: ~8–12 kg
-
Glass: 3.2mm AR-coated tempered glass
-
Frame: Aluminum Alloy
-
Junction Box: IP65, 2 Bypass Diodes
Warranty Information
